Adjustable Connectors: Fine-Tuning Your Loom for Peak Performance

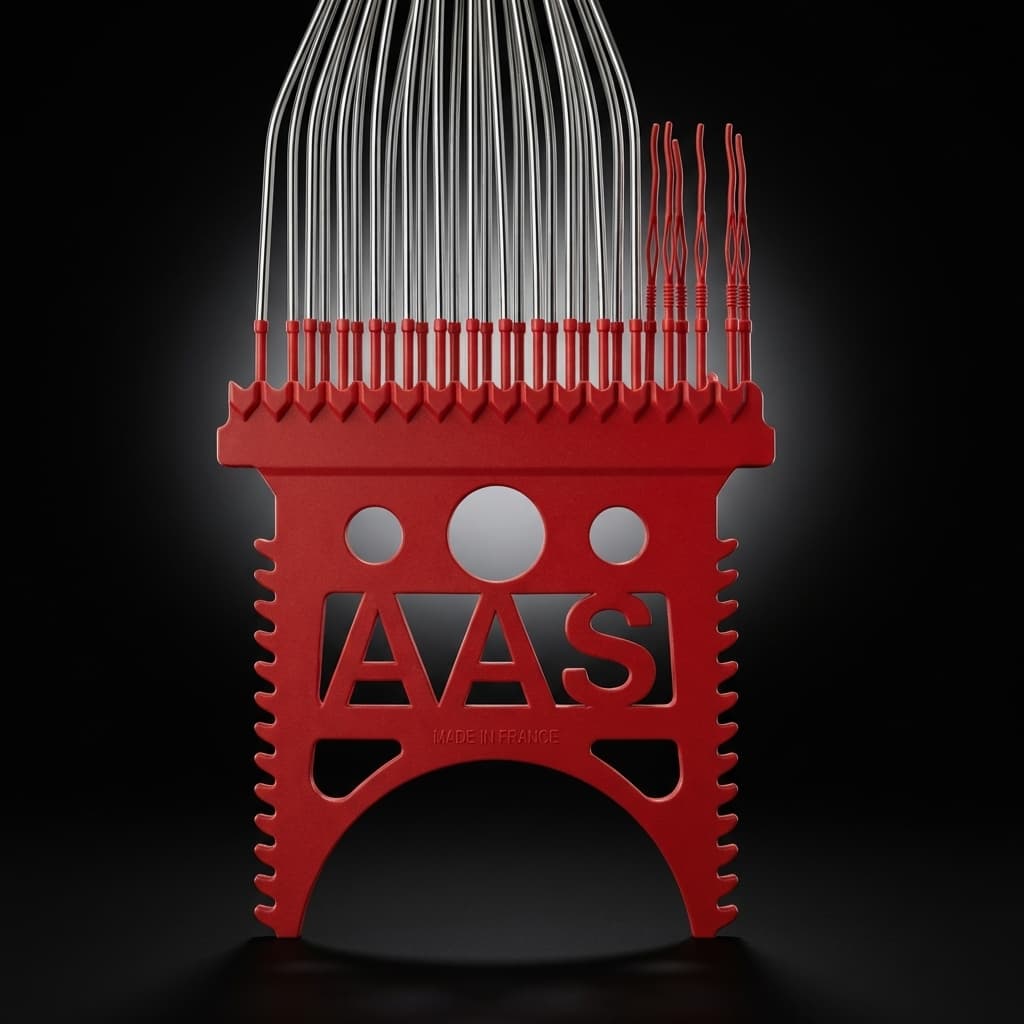

The Adjustable Connector is the fine-tuning mechanism within the Frame-to-Frame system. While every other component is precision-engineered to fixed specifications, the connectors provide the final adjustment capability that accounts for loom-specific variations in frame geometry, fabric tension requirements, and environmental conditions.

When and Why to Adjust

Connector adjustment is required during initial F2F installation and whenever fabric specifications change significantly. The adjustment controls the effective length of the harness cord path, which directly affects shedding geometry and the angle at which yarn passes through the heald eye.

Step-by-Step Adjustment Procedure

• Ensure the loom is at rest with the shedding mechanism at the mid-point position
• Measure the current cord length from the AHS guide to the bottom frame attachment point
• Compare against the specification for your loom type and fabric weight
• Adjust connectors in matched pairs (left and right of each harness frame) to maintain symmetry
• Verify adjustment by running the loom at slow speed and checking heald return timing
• Fine-tune ±0.5mm until heald return is consistent across all frames within ±2ms

Proper connector adjustment is the difference between a good F2F installation and a great one. Mills that invest time in precise adjustment during installation consistently report the highest RPM gains and lowest breakage rates.
